How to Unmute Icom HM-133 Microphone: Step-by-Step Guide to Restore Audio Functionality

0 4 minutes read

The Icom HM-133 microphone is a widely used handheld accessory for Icom radios, known for its durability and clear audio transmission. However, many users occasionally face an issue where their HM-133 microphone appears muted, preventing effective communication. Whether due to user error, connection issues, or software settings, knowing how to unmute Icom HM-133 microphone is crucial for maintaining uninterrupted radio operation. In this article, we’ll explore multiple steps, tips, and techniques to ensure your microphone works properly.

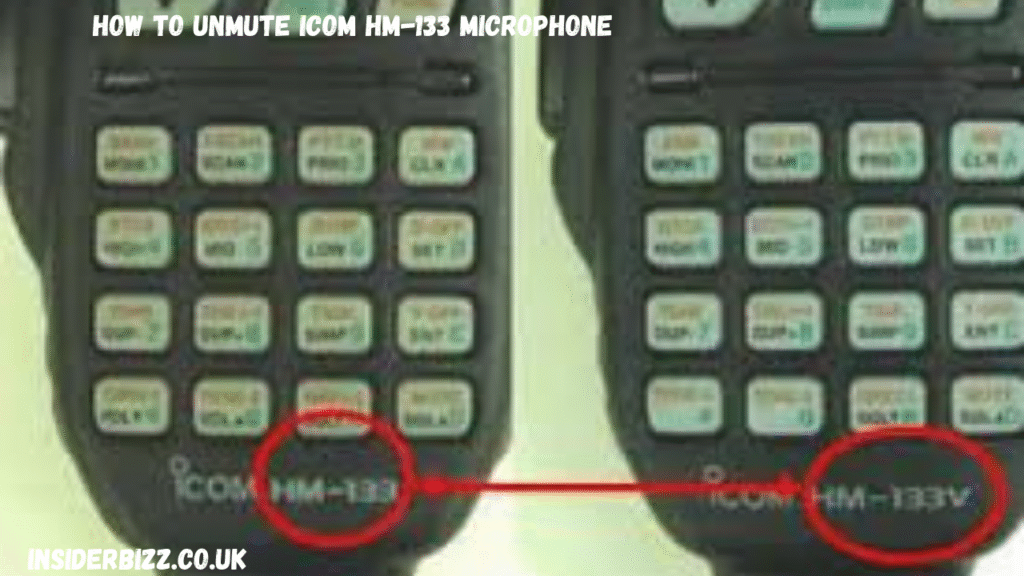

Understanding the Icom HM-133 Microphone

Before diving into the unmuting process, it’s important to understand the design and features of the Icom HM-133 microphone. This microphone is engineered for professional radio communication and features:

Push-to-Talk (PTT) Button: Activates audio transmission when pressed.
Noise-Reducing Microphone Element: Minimizes background noise for clear communication.
Durable Coiled Cable: Ensures flexibility and prevents cable tangling.
Compatibility with Various Icom Radios: Ensures universal use across models such as IC-7000, IC-706, and IC-718.

The key component for audio transmission is the PTT button. If your microphone seems muted, it could be related to the PTT function, improper connection, or settings within your radio unit.

Common Reasons the HM-133 Microphone Might Be Muted

Knowing the possible causes can help you address the issue faster. Here are the most frequent reasons your HM-133 microphone may not transmit audio:

PTT Button Stuck or Malfunctioning: If the button is stuck or not functioning correctly, audio won’t transmit.
Improper Connection: The microphone connector might not be fully seated into the radio’s microphone jack.
Incorrect Radio Settings: Some Icom radios have microphone gain or audio settings that can mute transmission.
Cable or Internal Damage: A damaged cable or internal microphone components can prevent audio.
Firmware or Software Limitations: Certain radios may require adjustments in software to enable external microphones.

Understanding these causes is essential before proceeding to solutions for how to unmute Icom HM-133 microphone.

Step-by-Step Guide: How to Unmute Icom HM-133 Microphone

Here’s a detailed step-by-step approach to restore your microphone’s functionality. Following these steps carefully can save you time and avoid unnecessary repairs.

Step 1: Check the Push-to-Talk (PTT) Button

The first and simplest check involves the PTT button.

Press the PTT button firmly to see if it engages properly.
Ensure it is not stuck in the pressed position.
If the button feels loose or unresponsive, it may need cleaning or replacement.

A properly functioning PTT button is critical, as it directly controls whether the microphone transmits sound.

Step 2: Inspect the Microphone Connector

Next, verify the physical connection between the HM-133 and your radio unit:

Disconnect the microphone from the radio.
Inspect the connector pins for dirt, debris, or damage.
Reinsert the microphone, ensuring it fits snugly into the microphone jack.

Even a slightly loose connection can make the microphone appear muted.

Step 3: Adjust Radio Audio Settings

Many Icom radios allow users to modify microphone gain, volume, and other audio settings. Follow these steps:

Access the radio’s menu and locate the microphone settings.
Ensure microphone gain is not set to zero.
Check if the radio has a “mic mute” option and make sure it is disabled.
Test audio transmission by speaking into the microphone while pressing the PTT button.

Proper configuration within the radio is essential to unmute the microphone effectively.

Step 4: Test the Microphone on Another Radio

To isolate whether the issue lies with the microphone or the radio unit:

Connect the HM-133 microphone to another compatible Icom radio.
Press the PTT button and check for audio transmission.

If the microphone works on a different radio, the problem may be specific to your radio’s settings or microphone port.

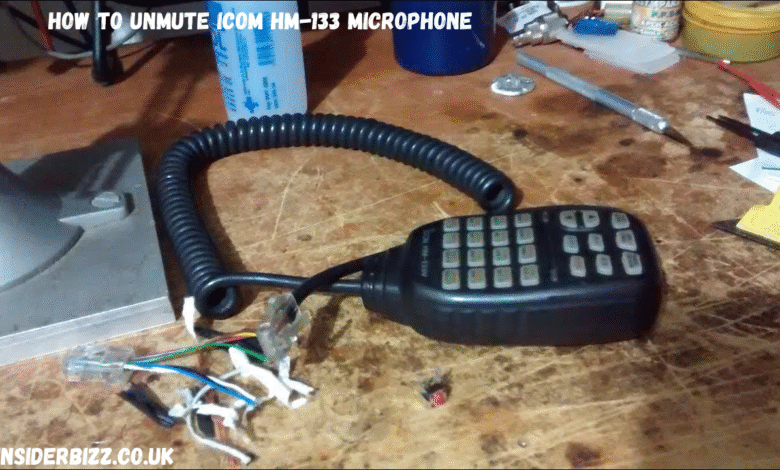

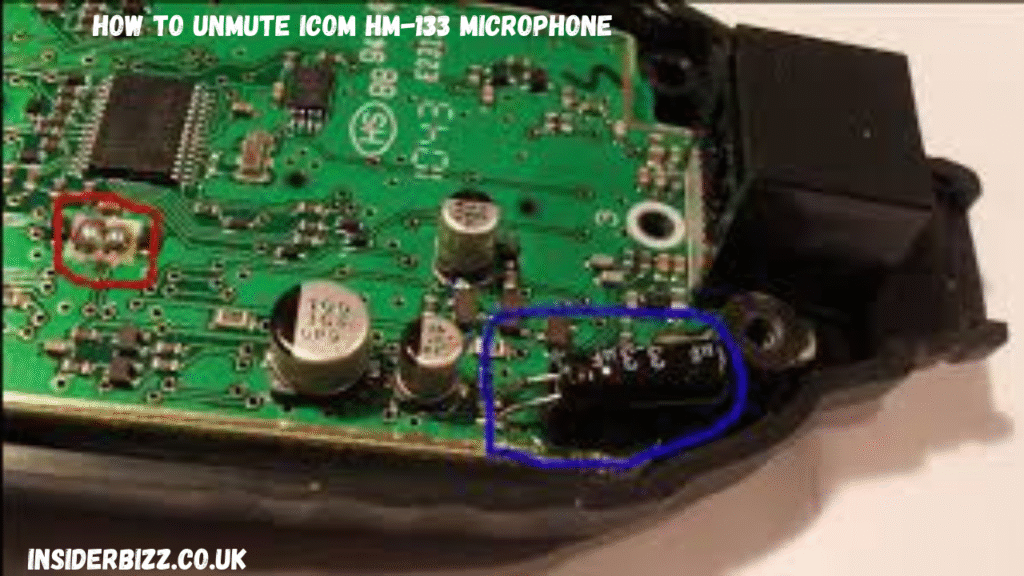

Step 5: Inspect the Cable and Internal Components

A damaged cable or internal microphone components can cause muting issues:

Look for visible cuts, kinks, or frayed areas on the coiled cable.
Listen for intermittent audio when slightly moving the cable while pressing the PTT button.
If you suspect internal damage, professional repair may be required.

This step ensures that hardware issues do not prevent unmuting the microphone.

Step 6: Reset Radio Settings (If Necessary)

If all else fails, resetting the radio to factory settings may resolve configuration-related muting issues:

Locate the “reset” or “initialize” option in your radio’s menu.
Follow the on-screen instructions carefully.
After resetting, recheck microphone functionality.

Resetting should only be used as a last resort, as it may erase other custom settings.

Additional Tips for Maintaining Microphone Performance

Once your HM-133 microphone is unmuted, keeping it in good condition will prevent future problems:

Keep the Connector Clean: Dust and grime can reduce connectivity.
Avoid Excessive Force on the Cable: Stretching or bending can damage internal wires.
Store Properly: When not in use, keep the microphone coiled neatly.
Test Regularly: Periodically test your microphone to detect minor issues early.

Following these tips will ensure that your microphone stays fully functional for years.

Troubleshooting Quick Checklist

For users seeking a fast solution, here’s a condensed checklist for how to unmute Icom HM-133 microphone:

Check and press the PTT button.
Ensure the microphone is properly connected.
Verify radio audio and mic settings.
Test on a different Icom radio.
Inspect the cable for physical damage.
Reset radio settings if necessary.

This checklist can save time and quickly pinpoint the problem.

Conclusion: Ensuring Reliable Communication

Knowing how to unmute Icom HM-133 microphone is essential for any radio operator. From simple PTT checks to deeper hardware inspections, these steps cover every aspect to restore audio functionality. By following the guidelines in this article, users can confidently troubleshoot and resolve microphone issues without relying on guesswork. A properly functioning HM-133 microphone ensures clear, uninterrupted communication, which is crucial for both professional and hobbyist radio operations.

By routinely checking the microphone and maintaining both hardware and software settings, you can avoid frustrating communication failures and enjoy a reliable Icom radio experience.
